Model 01 PH - Tee-Handle Female:

Actions / Downloads:

• Print
• Data Sheet (PDF)

Material: High impact resistant thermoplastic

Standard Colour: Black

Finish: Matt

Female Insert Material: Brass

Please refer to the table below for types and sizes of this product. Once you have found the exact component you require, select the 'Quote' button. In the fields provided, enter the quantity you require and add any special options or non-standard colours / threads.
We will reply by email within one working day with a price and delivery schedule.

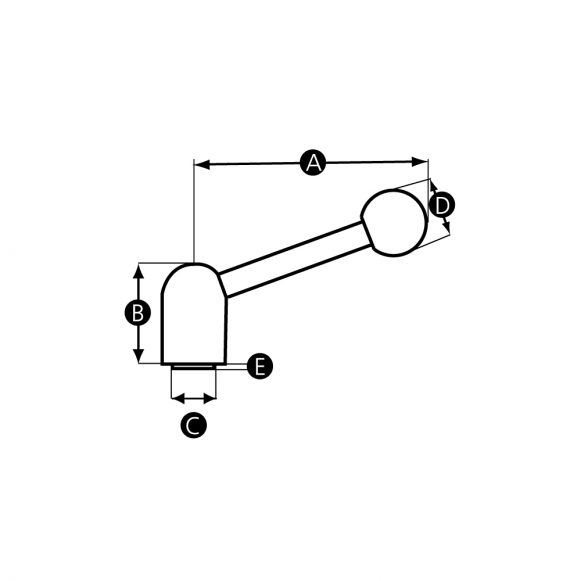

PATTERN	PART NO.	A	B	C	D	E	Thread size	QUOTE REQUEST
3740	8514P	40	10	13	20	13	M5
3750	5379P	50	9	14	16	16	M5
3760	5380U	60	9	16	23	18	M6
3772	5381X	71	15	18	19	19	M8
3772	8589X	71	15	18	19	19	M10
3780	8936V	80	14	26	26	27	M10
3780	8937R	80	14	26	26	27	M12
