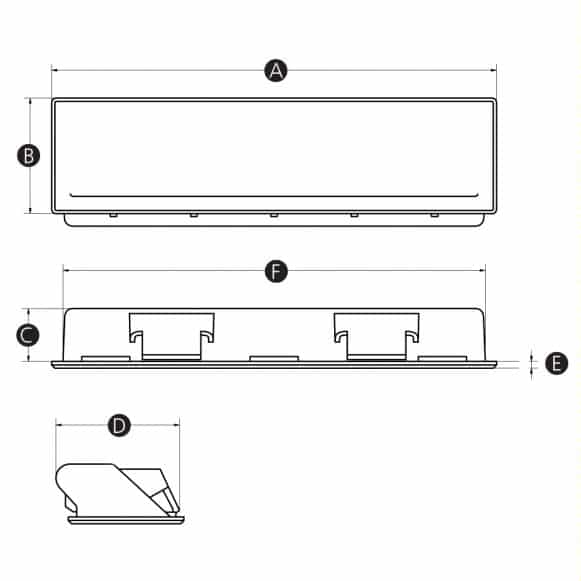

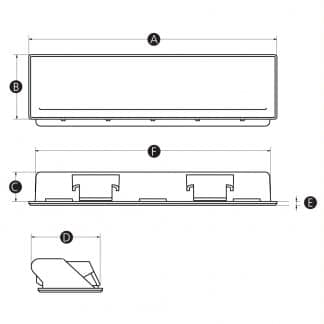

| Part No. | A | B | C | D | E | F | To fit wall thickness | Download CAD | Stocked status | M.O.Q. | Typical lead time | Price & availability |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 16052S | 93 | 36 | 16.5 | 38.2 | 2 | 87 | 1.0 - 1.4 | CAD | Stocked | Minimum order is 2 pieces | Typical lead time is 2 days | Confirm price & availability |
| 16053Z | 93 | 36 | 16.5 | 38.2 | 2 | 87 | 1.4 - 1.8 | CAD | Stocked | Minimum order is 2 pieces | Typical lead time is 2 days | Confirm price & availability |
| 16054V | 139 | 36 | 16.5 | 38.5 | 2 | 132 | 1.0 - 1.4 | CAD | Stocked | Minimum order is 2 pieces | Typical lead time is 2 days | Confirm price & availability |
| 16051W | 139 | 36 | 16.5 | 38.5 | 2 | 132 | 1.4 - 1.8 | CAD | Stocked | Minimum order is 2 pieces | Typical lead time is 2 days | Confirm price & availability |

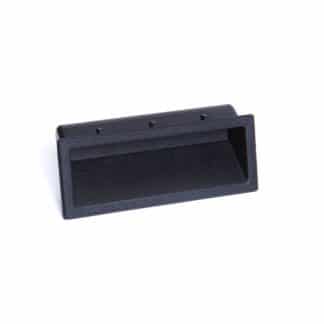

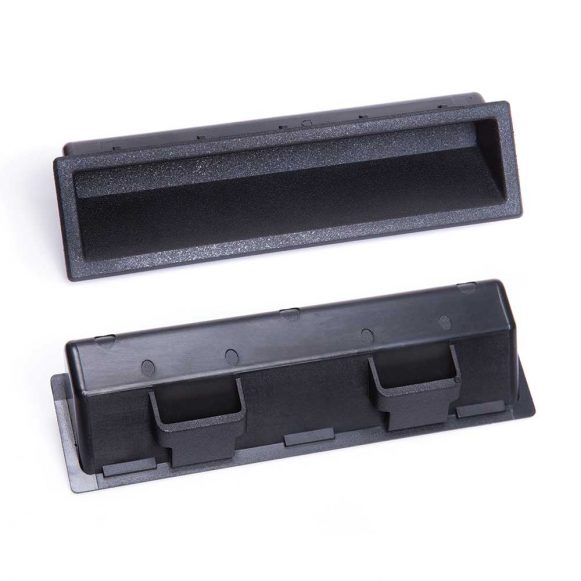

ABS Snap-in Flush Fit Pull Handle
Description
The Model 24 BH features a flush design which minimally protrudes on to the face of the door, drawer or panel. The matt textured ABS construction is durable and has a modern appearance.

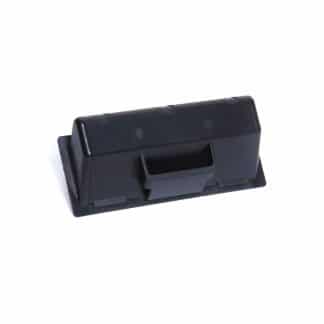

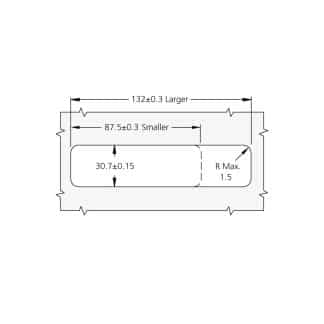

Fitting is exceptionally fast. A single aperture is prepared and the integrated mounting tabs snap-in behind the panel to hold the handle securely in place. Once the aperture is created, no tools are required for fitting.
These snap-in pull handles are designed specifically for use with panels of either 1.0mm to 1.4mm or 1.4mm to 1.8mm.
Fixing type
Quick fit, one piece, snap-in flush fitting
Material
ABS
Finish
Textured matt
Colour
Black
Download datasheetThis product complies with:
RoHS REACH Conflict Minerals California Prop 65
