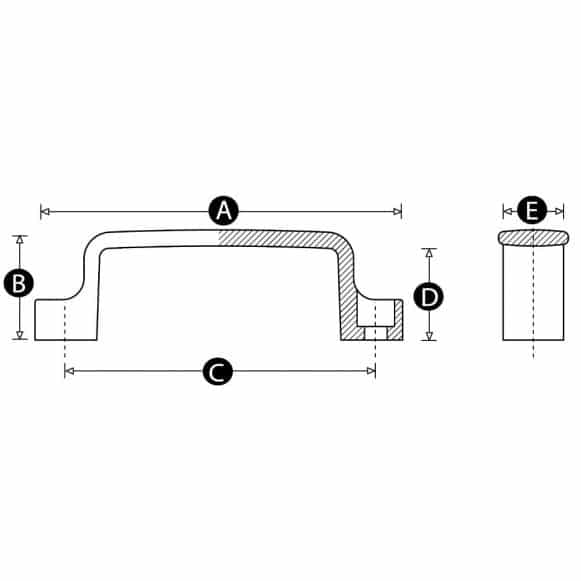

| Part No. | A | B | C | D | E | Bore Size | Download CAD | Stocked status | M.O.Q. | Typical lead time | Price & availability |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 9937V | 110 | 36 | 94 | 30 | 21 | 6.5 | CAD | Made to order | Minimum order is 500 pieces | Typical lead time is 16 weeks | Confirm price & availability |
| 9938R | 137 | 41 | 117 | 35 | 27 | 8.5 | CAD | Made to order | Minimum order is 500 pieces | Typical lead time is 16 weeks | Confirm price & availability |
| 9939Y | 153 | 45 | 132 | 38 | 27 | 8.5 | CAD | Made to order | Minimum order is 500 pieces | Typical lead time is 16 weeks | Confirm price & availability |
| 9940U | 200 | 50 | 179 | 42 | 29 | 8.5 | CAD | Made to order | Minimum order is 500 pieces | Typical lead time is 16 weeks | Confirm price & availability |

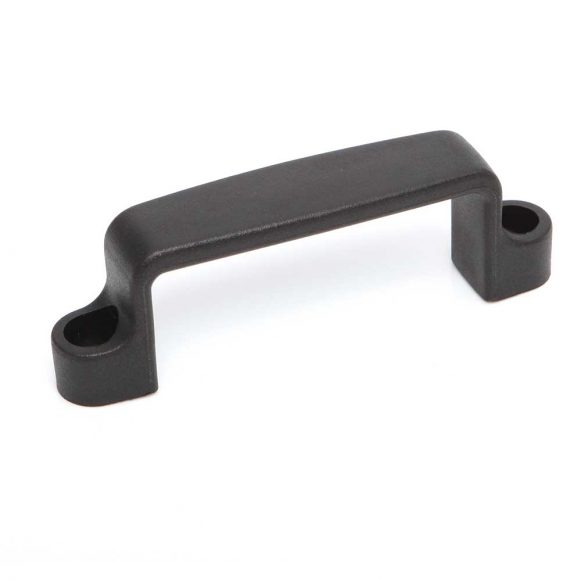

Plastic Bridge Handle with Moulded Bores
Description
The Model 02 BH is a strong, durable and low weight pull handle. This handle is frequently specified in industrial settings with a prevalence of heat, oil and environmental contaminants.
The reinforced nylon (15% glass filled PA6) construction is strong, durable, low weight and provides excellent value for money. Moulded (or plain) bores allow secure fitment via standard M6 or M8 bolts.
Fixing type
Plain bores for fixing with bolts from above.
Material
Reinforced nylon (15% glass filled PA6)
Standard handle colour
Black
Finish
Matt
Download datasheetThis product complies with:
RoHS REACH Conflict Minerals California Prop 65
