Model 04M CH

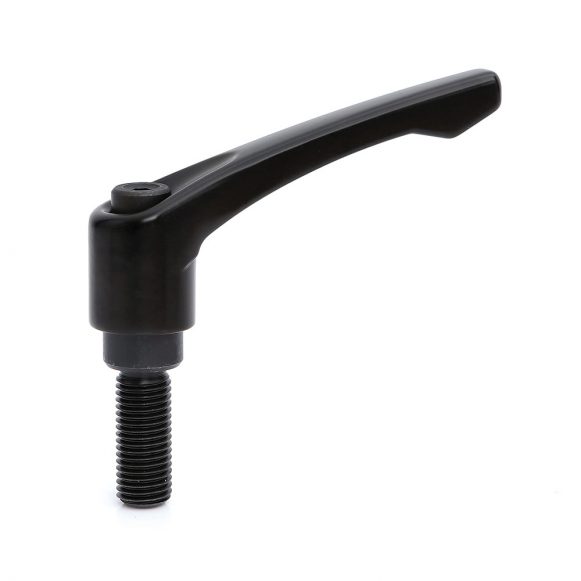

Male Metal Adjustable Indexed Clamping Handle, Heavy Duty

Description

The Model 04M CH is an exceptionally heavy duty metal clamping handle. All components in this handle are built to last, comprising a black powder coated die cast zinc lever, blackened steel boss, ratchet and male threaded stud, plus steel spring. For greater corrosion resistance a stainless steel boss is available on request. Alternatively, see our all stainless steel Model 05M CH.

This clamping handle is delivered with a machined, allen key fixing button. The button is depressed to disengage the lever which allows the user to rotate the handle to the desired position, then re-engage the ratchet to clamp.

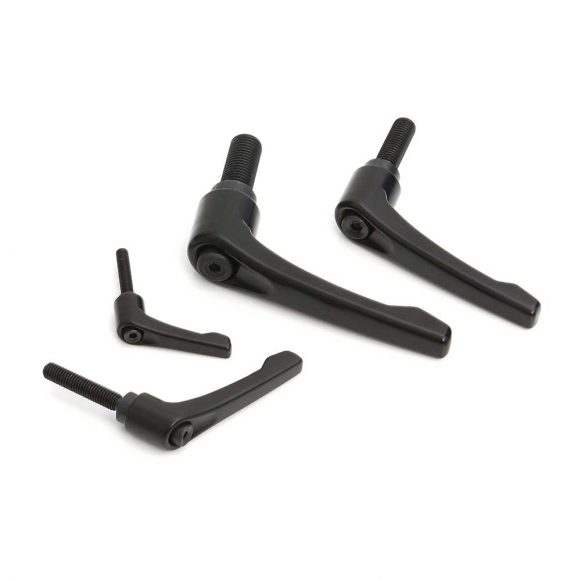

We offer various handle lengths and female thread sizes from M5 x 16mm up to M16 x 40mm.

Supplied in black, this handle is also often specified in orange. Other colours are available on request, subject to minimum order quantities.

This clamping handle is also available with a female thread.

Handle material

Die cast zinc

Insert material

Blackened steel boss and ratchet with allen key fixing screw. Stainless steel boss on request (MOQs apply).

Male thread material

Steel or stainless steel.

Handle colours

Black handle as standard. Other RAL colours on request (MOQs apply).

Download datasheet

This product complies with:

RoHS REACH Conflict Minerals California Prop 65
Part No.ABCDThread sizeThread length (mm)Insert MaterialDownload CADStocked statusM.O.Q.Typical lead timePrice & availability
12075Q42251037M516Blackened steelCADStockedMinimum order is 2 piecesTypical lead time is 2 daysConfirm price & availability
12076X42251037M520Blackened steelCADStockedMinimum order is 2 piecesTypical lead time is 2 daysConfirm price & availability
12090W42251037M520Stainless steelCADMade to orderMinimum order is 100 piecesTypical lead time is 16 weeksConfirm price & availability
12091S42251037M525Stainless steelCADMade to orderMinimum order is 100 piecesTypical lead time is 16 weeksConfirm price & availability
12082V42251037M616Blackened steelCADStockedMinimum order is 2 piecesTypical lead time is 2 daysConfirm price & availability
12096U42251037M616Stainless steelCADStockedMinimum order is 2 piecesTypical lead time is 2 daysConfirm price & availability
12083R42251037M620Blackened steelCADStockedMinimum order is 2 piecesTypical lead time is 2 daysConfirm price & availability
12097Q42251037M620Stainless steelCADStockedMinimum order is 2 piecesTypical lead time is 2 daysConfirm price & availability
12085U42251037M632Blackened steelCADStockedMinimum order is 2 piecesTypical lead time is 2 daysConfirm price & availability
12099T42251037M632Stainless steelCADStockedMinimum order is 2 piecesTypical lead time is 2 daysConfirm price & availability
12104V65311449M625Blackened steelCADMade to orderMinimum order is 100 piecesTypical lead time is 16 weeksConfirm price & availability
12105R65311449M632Blackened steelCADMade to orderMinimum order is 100 piecesTypical lead time is 16 weeksConfirm price & availability
12118U65311449M632Stainless steelCADMade to orderMinimum order is 100 piecesTypical lead time is 16 weeksConfirm price & availability
12119Q65311449M640Stainless steelCADMade to orderMinimum order is 100 piecesTypical lead time is 16 weeksConfirm price & availability
12108Q65311449M816Blackened steelCADStockedMinimum order is 2 piecesTypical lead time is 2 daysConfirm price & availability
12109X65311449M820Blackened steelCADStockedMinimum order is 2 piecesTypical lead time is 2 daysConfirm price & availability
12122P65311449M820Stainless steelCADStockedMinimum order is 2 piecesTypical lead time is 2 daysConfirm price & availability
12110T65311449M825Blackened steelCADStockedMinimum order is 2 piecesTypical lead time is 2 daysConfirm price & availability
12123W65311449M825Stainless steelCADStockedMinimum order is 2 piecesTypical lead time is 2 daysConfirm price & availability
12111P65311449M832Blackened steelCADStockedMinimum order is 2 piecesTypical lead time is 2 daysConfirm price & availability
12124S65311449M832Stainless steelCADStockedMinimum order is 2 piecesTypical lead time is 2 daysConfirm price & availability
12112W65311449M840Blackened steelCADStockedMinimum order is 2 piecesTypical lead time is 2 daysConfirm price & availability
12125Z65311449M840Stainless steelCADStockedMinimum order is 2 piecesTypical lead time is 2 daysConfirm price & availability
12113S65311449M850Blackened steelCADStockedMinimum order is 2 piecesTypical lead time is 2 daysConfirm price & availability
12126V65311449M850Stainless steelCADStockedMinimum order is 2 piecesTypical lead time is 2 daysConfirm price & availability
12128Y78361657M1020Blackened steelCADStockedMinimum order is 2 piecesTypical lead time is 2 daysConfirm price & availability
12135S78361657M1020Stainless steelCADStockedMinimum order is 2 piecesTypical lead time is 2 daysConfirm price & availability
12130Q78361657M1032Blackened steelCADStockedMinimum order is 2 piecesTypical lead time is 2 daysConfirm price & availability
12137V78361657M1032Stainless steelCADStockedMinimum order is 2 piecesTypical lead time is 2 daysConfirm price & availability
12131X78361657M1040Blackened steelCADStockedMinimum order is 2 piecesTypical lead time is 2 daysConfirm price & availability
12138R78361657M1040Stainless steelCADStockedMinimum order is 2 piecesTypical lead time is 2 daysConfirm price & availability
12132T78361657M1050Blackened steelCADStockedMinimum order is 2 piecesTypical lead time is 2 daysConfirm price & availability
12142X92431965M1020Blackened steelCADStockedMinimum order is 2 piecesTypical lead time is 2 daysConfirm price & availability
12144P92431965M1032Blackened steelCADStockedMinimum order is 2 piecesTypical lead time is 2 daysConfirm price & availability
12145W92431965M1040Blackened steelCADStockedMinimum order is 2 piecesTypical lead time is 2 daysConfirm price & availability
12146S92431965M1050Blackened steelCADStockedMinimum order is 2 piecesTypical lead time is 2 daysConfirm price & availability
12160R92431965M1050Stainless steelCADStockedMinimum order is 2 piecesTypical lead time is 2 daysConfirm price & availability
12161Y92431965M1063Stainless steelCADMade to orderMinimum order is 100 piecesTypical lead time is 16 weeksConfirm price & availability
12151U92431965M1232Blackened steelCADStockedMinimum order is 2 piecesTypical lead time is 2 daysConfirm price & availability
12165T92431965M1232Stainless steelCADStockedMinimum order is 2 piecesTypical lead time is 2 daysConfirm price & availability
12152Q92431965M1240Blackened steelCADStockedMinimum order is 2 piecesTypical lead time is 2 daysConfirm price & availability
12166P92431965M1240Stainless steelCADStockedMinimum order is 2 piecesTypical lead time is 2 daysConfirm price & availability
12153X92431965M1250Blackened steelCADStockedMinimum order is 2 piecesTypical lead time is 2 daysConfirm price & availability
12167W92431965M1250Stainless steelCADStockedMinimum order is 2 piecesTypical lead time is 2 daysConfirm price & availability
12154T92431965M1263Blackened steelCADStockedMinimum order is 2 piecesTypical lead time is 2 daysConfirm price & availability
12168S92431965M1263Stainless steelCADStockedMinimum order is 2 piecesTypical lead time is 2 daysConfirm price & availability
12171R108512377M1640Blackened steelCADMade to orderMinimum order is 100 piecesTypical lead time is 16 weeksConfirm price & availability
12176T108512377M1640Stainless steelCADMade to orderMinimum order is 100 piecesTypical lead time is 16 weeksConfirm price & availability
