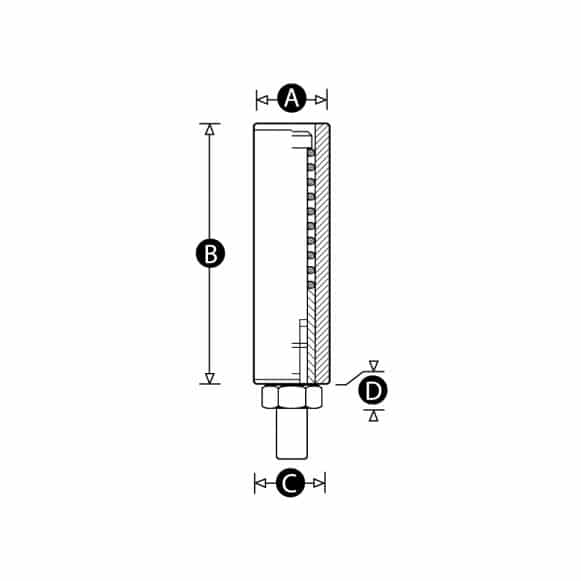

| Part No. | A | B | C | D | Thread size | Thread length (mm) | Download CAD | Stocked status | M.O.Q. | Typical lead time | Price & availability |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 5479P | 25 | 82 | 25 | 7 | M10 | 17 | CAD | Stocked | Minimum order quantity 10 pieces | Typical lead time is 2 days | Confirm price & availability |
| 5480V | 25 | 90 | 25 | 7 | M10 | 17 | CAD | Made to order | Minimum order quantity 10 pieces | Typical lead time is 2 days | Confirm price & availability |
Thermoplastic Revolving and Folding Straight Handle
Description

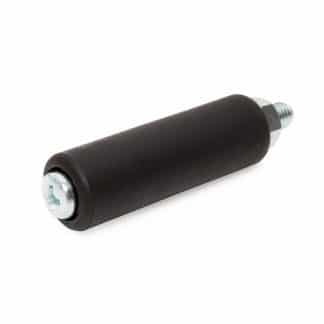

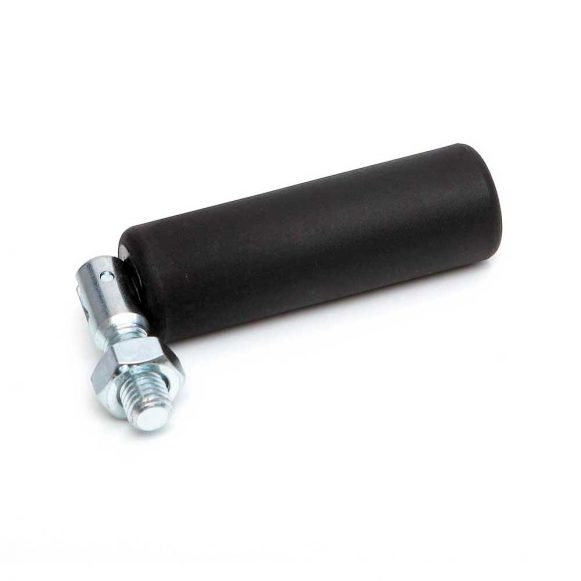

Our Model 06ST PH is a folding (or retractable) rotating handle. This revolving handle comprises an injection moulded thermoplastic handle mated to a zinc plated steel revolving, folding mechanism with an M10 thread.
The high impact resistant thermoplastic is strong, durable and resistant to solvents, oils, grease and other chemical agents.
We also supply a similar product but with a tapered plastic handle.
Material
High impact resistant thermoplastic
Standard colour
Black
Finish
Matt
Male thread material
Zinc plated steel
Download datasheetThis product complies with:
RoHS REACH Conflict Minerals California Prop 65
