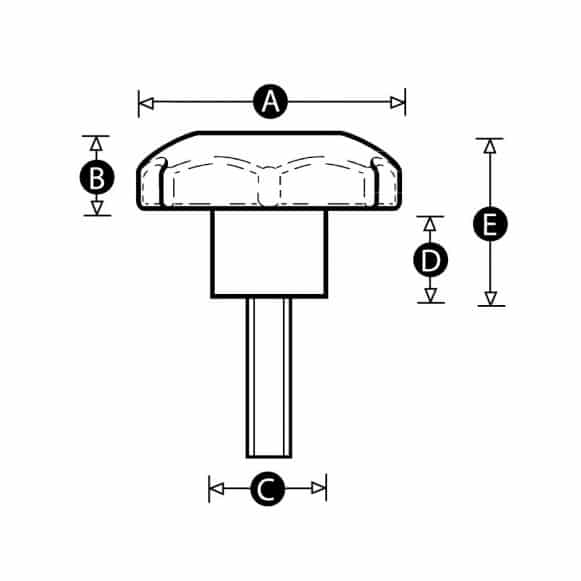

| Part No. | A | B | C | D | E | Thread size | Thread length (mm) | Download CAD | Stocked status | M.O.Q. | Typical lead time | Price & availability |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 8630Y | 30 | 13 | 14 | 9 | 22 | M6 | 10 | CAD | Made to order | Minimum order 100 pieces | Typical lead time is 16 weeks | Confirm price & availability |
| 8628V | 30 | 13 | 14 | 9 | 22 | M6 | 20 | CAD | Made to order | Minimum order 100 pieces | Typical lead time is 16 weeks | Confirm price & availability |
| 8626S | 30 | 13 | 14 | 9 | 22 | M6 | 30 | CAD | Made to order | Minimum order 100 pieces | Typical lead time is 16 weeks | Confirm price & availability |
| 8619Y | 40 | 13 | 18 | 12 | 25 | M8 | 15 | CAD | Stocked | Minimum order 10 pieces | Typical lead time is 2 days | Confirm price & availability |
| 8622X | 40 | 13 | 18 | 12 | 25 | M8 | 25 | CAD | Made to order | Minimum order 500 pieces | Typical lead time is 16 weeks | Confirm price & availability |
| 8618R | 50 | 16 | 21 | 16 | 32 | M8 | 20 | CAD | Made to order | Minimum order 500 pieces | Typical lead time is 16 weeks | Confirm price & availability |
| 8616Z | 50 | 16 | 21 | 16 | 32 | M8 | 30 | CAD | Made to order | Minimum order 500 pieces | Typical lead time is 16 weeks | Confirm price & availability |
| 8614W | 50 | 16 | 21 | 16 | 32 | M8 | 40 | CAD | Made to order | Minimum order 500 pieces | Typical lead time is 16 weeks | Confirm price & availability |
| 8612T | 50 | 16 | 21 | 16 | 32 | M10 | 30 | CAD | Made to order | Minimum order 500 pieces | Typical lead time is 16 weeks | Confirm price & availability |
| 8610Q | 50 | 16 | 21 | 16 | 32 | M10 | 40 | CAD | Made to order | Minimum order 500 pieces | Typical lead time is 16 weeks | Confirm price & availability |
| 8603W | 60 | 21 | 24 | 19 | 40 | M12 | 30 | CAD | Made to order | Minimum order 100 pieces | Typical lead time is 16 weeks | Confirm price & availability |
| 8600X | 60 | 21 | 24 | 19 | 40 | M12 | 50 | CAD | Made to order | Minimum order 100 pieces | Typical lead time is 16 weeks | Confirm price & availability |

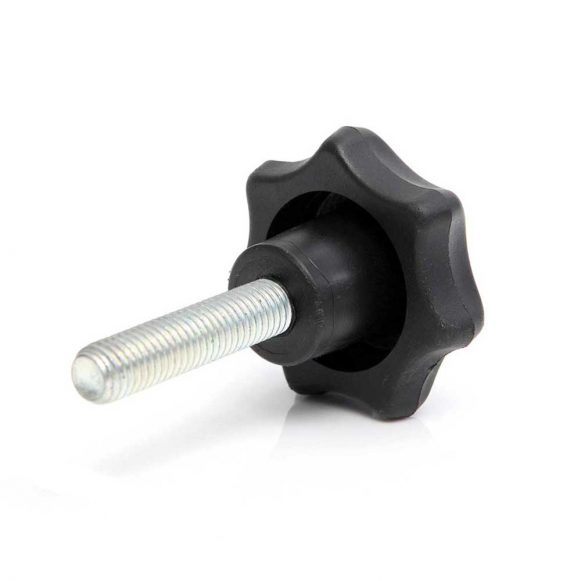

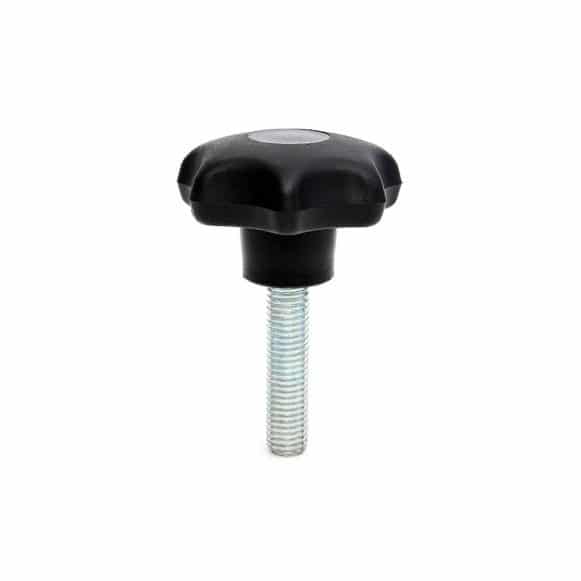

Male Threaded Lobe Knob with Coloured Cap & Logo
Description
Our Model 07M PK comprises a matt black polypropylene knob, zinc plated steel male threaded stud and black cap. The cap can be customised in any RAL colour and your company logo can be added for a one-off tooling charge of £160 (minimum order quantities apply).
We also manufacture this item with a female threaded insert.
Material
Polypropylene
Standard colour
Black
Finish
Matt
Male thread material
Zinc plated steel
Cap colours
Black as standard. Caps available in many different RAL colours (MOQs apply).
Options
Add your company logo to the cap for a one off tooling charge of £160 (MOQs apply).
Download datasheetThis product complies with:
RoHS REACH Conflict Minerals California Prop 65
