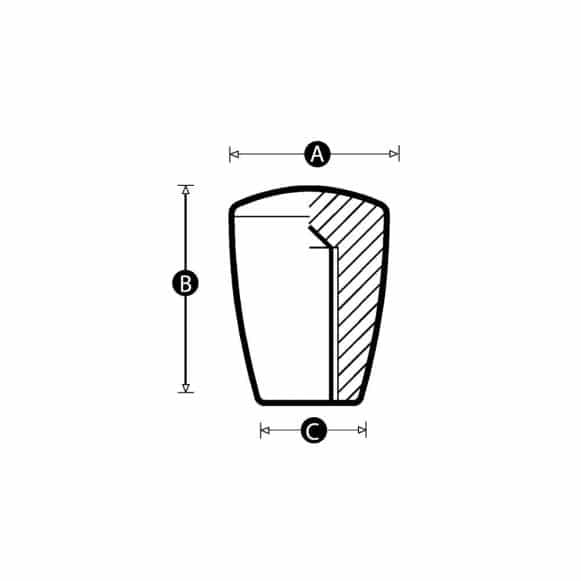

| Part No. | A | B | C | To fit shaft mm (H9) | Download CAD | Stocked status | M.O.Q. | Typical lead time | Price & availability |
|---|---|---|---|---|---|---|---|---|---|
| 8748Z | 15 | 20 | 10 | 5 | CAD | Made to order | Minimum order 500 pieces | Typical lead time is 16 weeks | Confirm price & availability |
| 8530R | 18 | 25 | 12 | 6 | CAD | Made to order | Minimum order 500 pieces | Typical lead time is 16 weeks | Confirm price & availability |
| 8531Y | 24 | 33 | 16 | 8 | CAD | Made to order | Minimum order 500 pieces | Typical lead time is 16 weeks | Confirm price & availability |
| 8532U | 24 | 33 | 16 | 10 | CAD | Made to order | Minimum order 500 pieces | Typical lead time is 16 weeks | Confirm price & availability |
| 8745P | 28 | 38 | 18 | 10 | CAD | Made to order | Minimum order 500 pieces | Typical lead time is 16 weeks | Confirm price & availability |
| 8455U | 31 | 43 | 21 | 10 | CAD | Stocked product | Minimum order 10 pieces | Typical lead time is 2 days | Confirm price & availability |
| 8456Q | 31 | 43 | 21 | 12 | CAD | Made to order | Minimum order 500 pieces | Typical lead time is 16 weeks | Confirm price & availability |

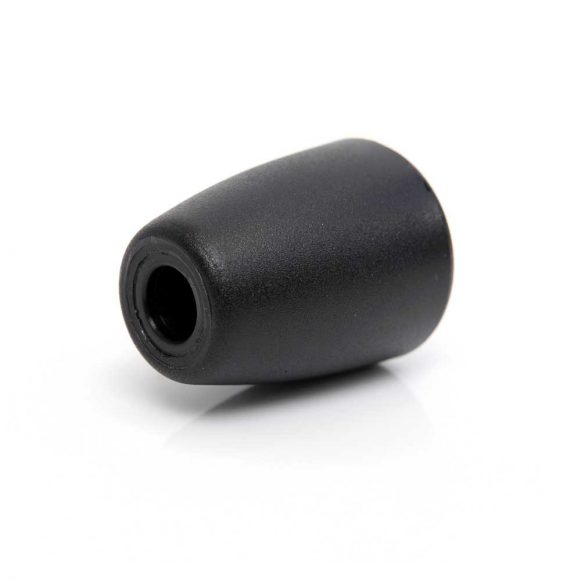

Self Fixing Taper Knob
Description
These high impact resistant thermoplastic conical taper knobs are typically mounted to the threaded metal shaft on a lever. Common applications include lathes, litho printing press, fork lifts and construction machinery.
The matt finish, nylon material is strong, durable and resistant to oils and solvents commonly found in industrial settings.
We also manufacture this taper knob with a female thread.
Material
High impact resistant thermoplastic
Standard colour
Black
Finish
Matt finish
Bore
Push-fit assembly
Download datasheetThis product complies with:
RoHS REACH Conflict Minerals California Prop 65
