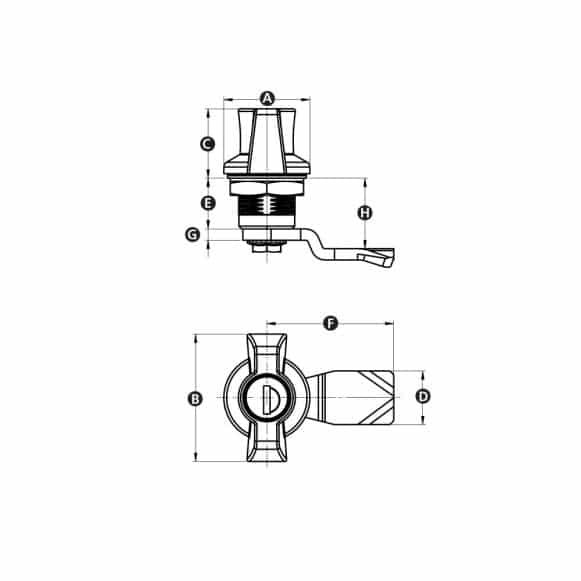

| Part No. | A | B | C | D | E | F | G | H | Download CAD | Stocked status | M.O.Q. | Typical lead time | Price & availability |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 16995X | 30.5 | 45.2 | 24.6 | 19 | 18 | 45 | 4 | 25 | Stocked | Minimum order is 2 pieces | Typical lead time is 2 days | Confirm price & delivery |
Quarter-Turn Cam Lock with Wing Knob, Silver
Description
Our Model 18 ML cam lock is designed for cabinets and enclosures. The wing knob provides a comfortable and durable quarter-turn locking mechanism.
These quarter-turn cam locks are strong and durable thanks to a die cast zinc plated steel lock mechanism and silver die cast zinc knob. Rotate the knob by a quarter turn (90 degrees) to lock or unlock the cabinet. Complete with 2 keys.
Material
Die cast zinc plated steel lock mechanism and die cast zinc knob.
IP rating
IP54: Dust protected / Protected against splashing water
Download datasheetThis product complies with:
RoHS REACH Conflict Minerals California Prop 65
