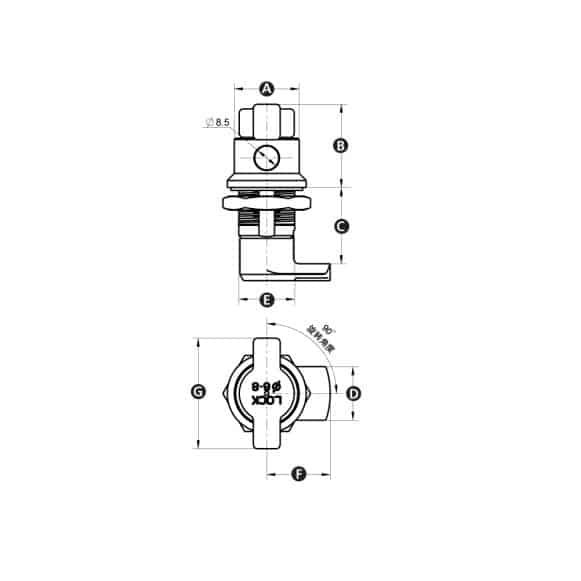

| Part No. | A | B | C | D | E | F | Download CAD | Stocked status | M.O.Q. | Typical lead time | Price & availability |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 16672R | 23 | 29.6 | 27 | 19 | 19.8 | 22.5 | CAD | Stocked | Minimum order is 2 pieces | Typical lead time is 2 days | Confirm price & availability |

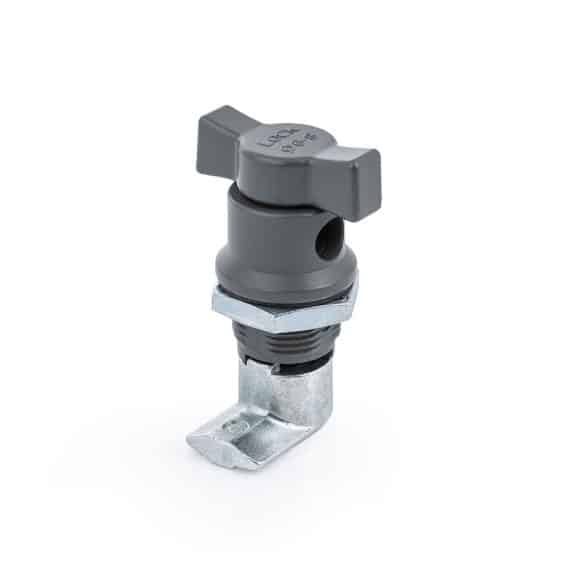

Cylinder Cam Lock, Quarter Turn Latch for Padlocks
Description
Our Model 20 ML cam lock is designed to be used with a padlock to provide increased security on cabinets and enclosures. Holes in the lock allow various padlock shackle sizes.
These quarter-turn cam locks are strong and durable, thanks to die-cast zinc-plated steel lock mechanism and powder-coated blue/grey knob.
Rotate the lock knob by a quarter turn (90 degrees) to lock or unlock the cabinet.
Material
Die cast zinc plated steel lock mechanism and powder coated blue/grey knob.
IP rating
IP54: Dust protected / Protected against splashing water
Download datasheetThis product complies with:
RoHS REACH Conflict Minerals California Prop 65
