Model 03 HI

Plastic Countersunk Hinge for Aluminium Profile Extrusions

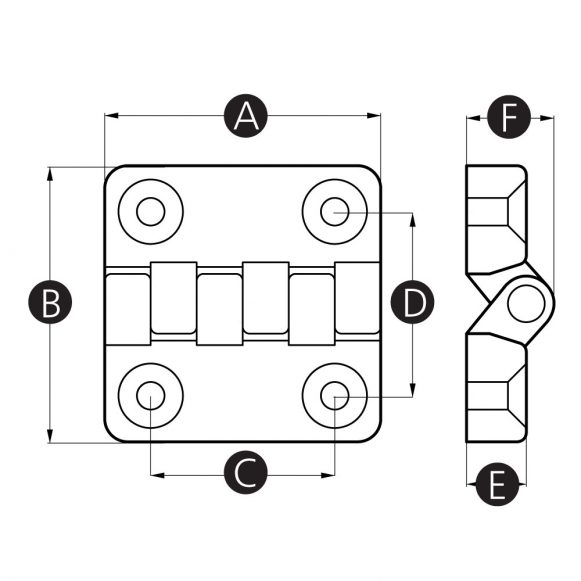

Plastic surface mount hinge with countersink holes technical drawing

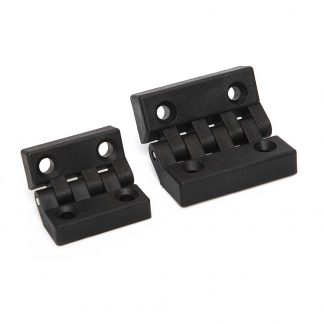

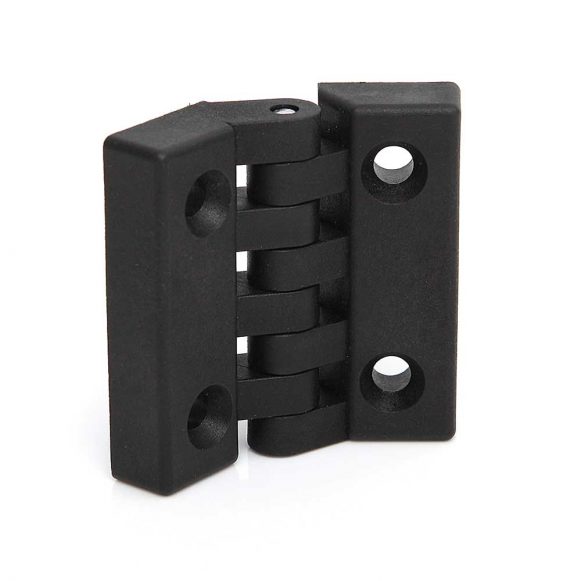

Plastic surface mount hinge with countersink holes

Description

Our Model 03 HI plastic hinge is designed specifically for use with 30mm and 40mm aluminium profile extrusion however it also well suited to various other hinge applications.

The glass filled nylon body and zinc plated steel pin make for a low weight but strong and durable construction.

The 7mm countersunk bores are ideal for M6 threaded bolts or screws commonly used in conjunction with t-slots to create doors, panels and guards on furniture and equipment constructed from aluminium profile extrusions.

Material

High impact resistant thermoplastic

Colour

Black. Other RAL colours available (MOQs apply).

Download datasheet

This product complies with:

RoHS REACH Conflict Minerals California Prop 65

Variations
Frequently asked questions

Part No.	A	B	C	D	E	F	Hole Size (mm)	Download CAD	Stocked status	M.O.Q.	Typical lead time	Price & availability
14279P	48	48	30	30	11	16	7	CAD	Stocked	Minimum order is 2 pieces	Typical lead time is 2 days	Confirm price & availability
14280W	64	64	40	40	13	19	7	CAD	Stocked	Minimum order is 2 pieces	Typical lead time is 2 days	Confirm price & availability
