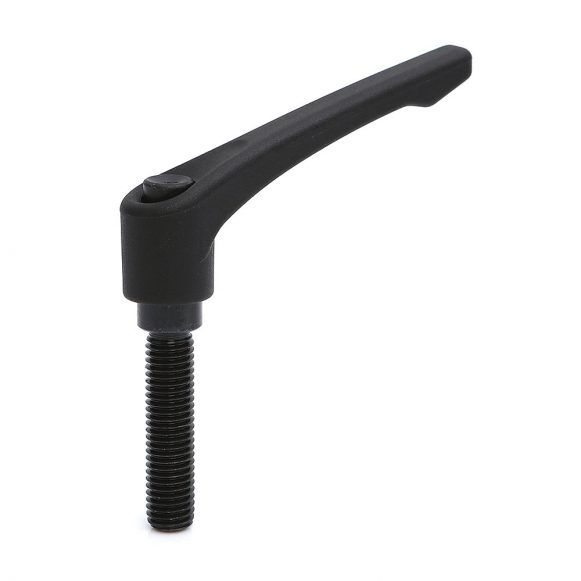

Male Plastic Clamping Handle with Metal Indexing Ratchet

Description

The Model 03M CH is a strong, well proportioned lever which offers exceptional comfort and grip. The clamping lever is reinforced with a metal serrated insert and the boss and ratchet mechanism is machined from steel and blackened for durability. For greater strength and corrosion resistance a stainless steel boss is available on request. Alternatively, see our all stainless steel Model 05M CH.

This clamping handle is delivered with a machined, allen key fixing button. The button is depressed to disengage the lever which allows the user to rotate the handle to the desired position, then re-engage the ratchet to clamp.

We offer various handle lengths and with a male thread stud in sizes from M6 x 16mm up to M12 x 63mm.

Supplied in black, this handle is also often specified in orange. Other colours are available on request, subject to minimum order quantities.

This clamping handle is also available with a female thread.
