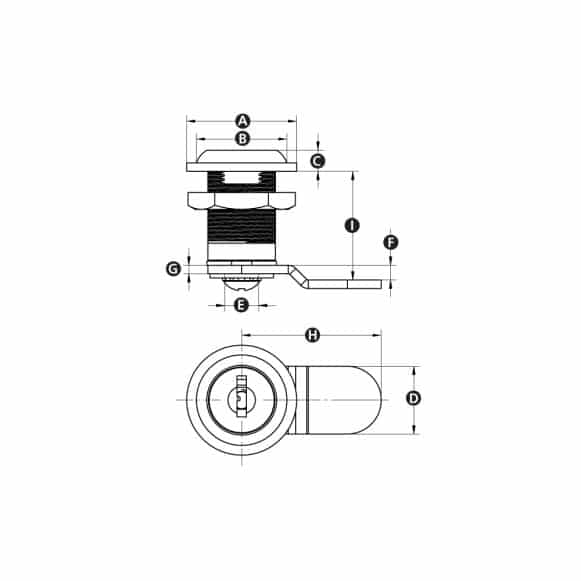

| Part No. | A | B | C | D | E | F | G | H | I | Download CAD | Stocked status | M.O.Q. | Typical lead time | Price & availability |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 16266V | 22 | 22 | 5 | 15 | 10.5 | - | 2 | 33 | 22.4 | Stocked | Minimum order is 2 pieces | Typical lead time is 2 days | Confirm price & delivery | |
| 16990V | 26 | 21.4 | 5 | 16 | 8 | 3.5 | 2 | 33 | 26 | Stocked | Minimum order is 2 pieces | Typical lead time is 2 days | Confirm price & delivery |

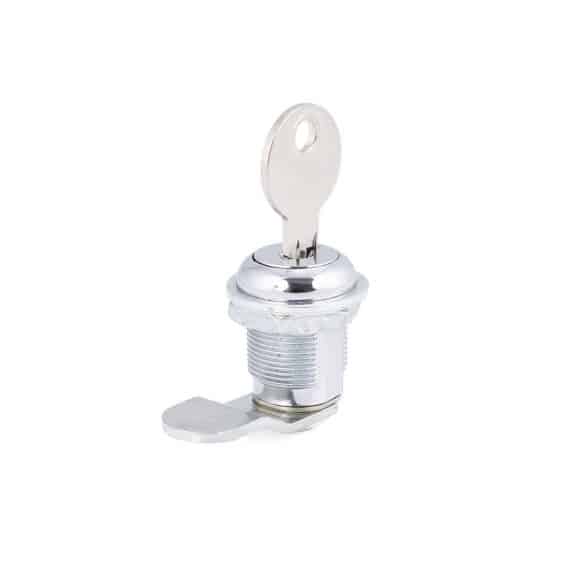

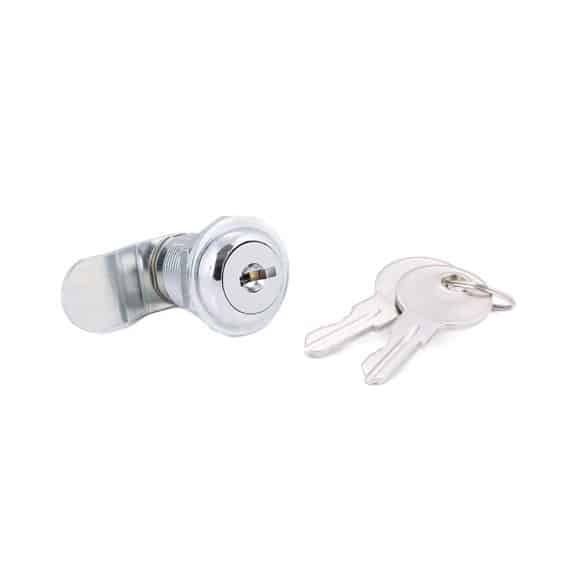

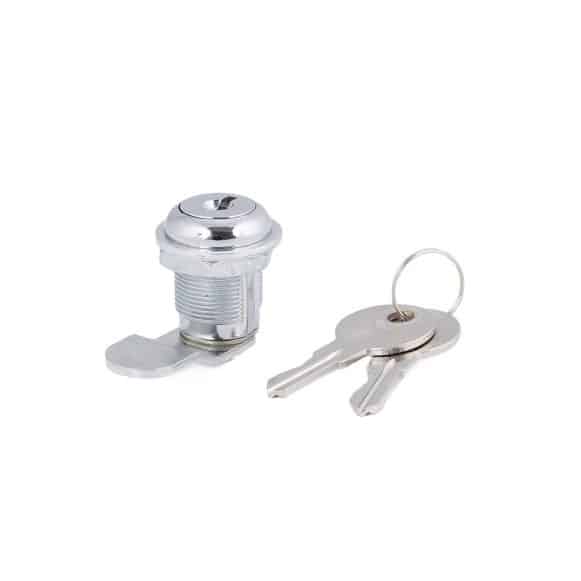

Chrome Plated Camlock with Cylinder Lock & Key
Description
Our Model 15 ML is a chrome-plated die-cast zinc standard cylinder lock with a quarter-turn, 90° cam locking mechanism. These latches allow the user to open a door, drawer or access panel by inserting the key and rotating 90°. This directs the cam away from the contact point within the enclosure or cabinet and allows access.
These cam locks come complete with two matching keys.
Description
90-degree cam-action lock with key
Material
Chrome plated die-cast zinc housing and insert, zinc plated steel cam
Download datasheetThis product complies with:
RoHS REACH Conflict Minerals California Prop 65
