| Part No. | A | B | C | D | E | F | G | H | I | J | K | L | Type | Download CAD | Stocked status | M.O.Q. | Typical lead time | Price & availability |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 16673Y | 31 | 32 | 27 | 21.2 | 19.8 | 14.6 | 23.9 | 45 | 8.4 | 50 | 19 | 28 | With key and lock | CAD | Stocked | Minimum order is 2 pieces | Typical lead time is 2 days | Confirm price & availability |
| 16674U | 31 | 32 | 27 | 21.2 | 19.8 | 14.6 | 23.9 | 45 | 8.4 | 50 | 19 | 28 | No lock | CAD | Stocked | Minimum order is 2 pieces | Typical lead time is 2 days | Confirm price & availability |

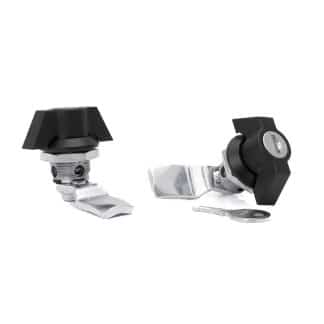

Quarter-Turn Cam Lock with Wing Knob
Description
Our Model 12 ML cam lock is designed to be used on cabinets and enclosures. The wing knob provides a comfortable and durable quarter-turn locking mechanism.
These quarter-turn cam locks are strong and durable thanks to a die cast zinc plated steel lock mechanism and black powder coated die cast zinc knob. Rotate the knob by a quarter turn (90 degrees) to lock or unlock the cabinet.
Material
Die cast zinc plated steel lock mechanism and black powder coated die cast zinc knob.
IP rating
IP54: Dust protected / Protected against splashing water
Download datasheetThis product complies with:
RoHS REACH Conflict Minerals California Prop 65
