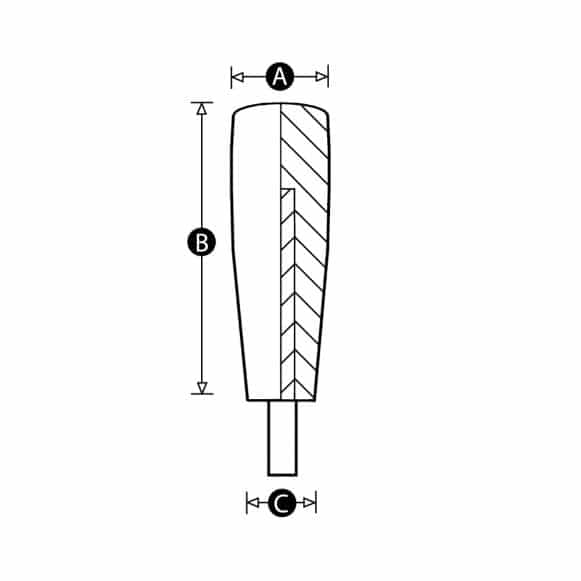

| Part No. | A | B | C | Thread size | Thread length (mm) | Thread material | Download CAD | Stocked status | M.O.Q. | Typical lead time | Price & availability |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 9128X | 18 | 40 | 15 | M6 | 10 | Zinc plated steel | CAD | Stocked | Minimum order quantity 10 pieces | Typical lead time is 2 days | Confirm price & availability |
| 14283V | 18 | 40 | 15 | M6 | 10 | Stainless steel | CAD | Stocked | Minimum order quantity 10 pieces | Typical lead time is 2 days | Confirm price & availability |
| 9127Q | 21 | 50 | 17 | M8 | 12 | Zinc plated steel | CAD | Made to order | Minimum order quantity 500 pieces | Typical lead time is 16 weeks | Confirm price & availability |
| 14284R | 23 | 65 | 19 | M8 | 10 | Stainless steel | CAD | Stocked | Minimum order quantity 10 pieces | Typical lead time is 2 days | Confirm price & availability |
| 9126U | 23 | 65 | 19 | M10 | 15 | Zinc plated steel | CAD | Made to order | Minimum order quantity 500 pieces | Typical lead time is 16 weeks | Confirm price & availability |
| 14285Y | 26 | 80 | 21 | M8 | 10 | Stainless steel | CAD | Stocked | Minimum order quantity 10 pieces | Typical lead time is 2 days | Confirm price & availability |
| 9125Y | 26 | 80 | 21 | M12 | 20 | Zinc plated steel | CAD | Made to order | Minimum order quantity 500 pieces | Typical lead time is 16 weeks | Confirm price & availability |
| 14286U | 28 | 90 | 22 | M10 | 15 | Stainless steel | CAD | Stocked | Minimum order quantity 10 pieces | Typical lead time is 2 days | Confirm price & availability |
| 9124R | 28 | 90 | 22 | M12 | 20 | Zinc plated steel | CAD | Made to order | Minimum order quantity 500 pieces | Typical lead time is 16 weeks | Confirm price & availability |

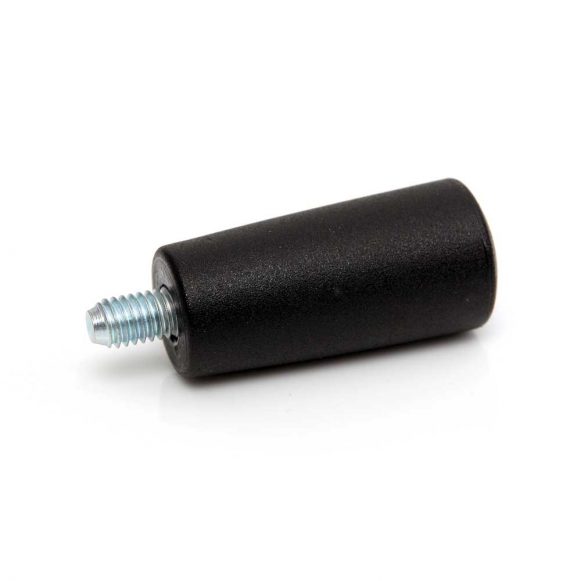

Male Thermoplastic Handle
Description
These fixed, threaded, non-rotating thermoplastic handles could also be described as cylindrical knobs. They are frequently used in place of ball knobs on operating levers and handles.
The Model 05F PH is a comfortable, modern design with a tough matt finish and zinc plated steel or stainless steel thread. The high impact resistant thermoplastic and zinc plated steel construction is strong, durable and resistant to solvents, oils, grease and other chemical agents.
We also manufacture these handles with a ‘knock-on/press-on’, self fixing thread and a female thread.
Material
High impact resistant thermoplastic
Standard colour
Black
Finish
Matt
Male thread material
Zinc plated steel or stainless steel
Download datasheetThis product complies with:
RoHS REACH Conflict Minerals California Prop 65
