Mini Index Plunger for Thin-Walled Material

Description

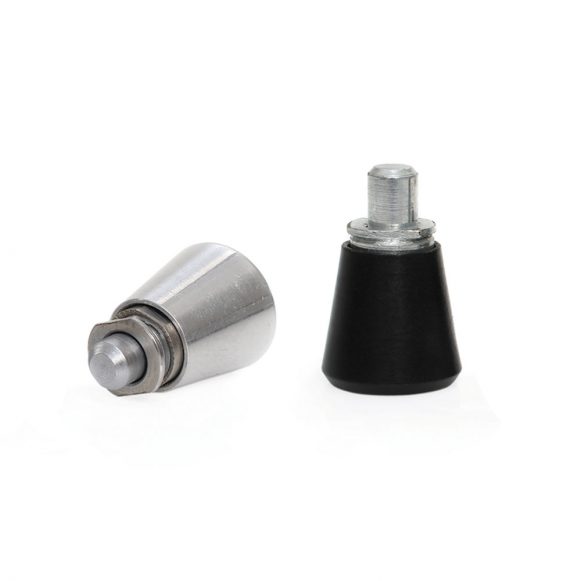

The Model 08 IP is a compact index plunger comprising an aluminium knob, steel plunger pin, spring and screw-in locking sleeve. This product is specifically designed for mounting on thin walled material up to 2mm thick.

These pull retractable plungers are used in a wide variety of positioning, locking and locating applications such as shop fitting, point of sale, display and electrical cabinets and enclosures.

Thanks to its small size and short-stroke retractable pin, this item is particularly suited to positioning applications in confined spaces.

A 90° rest position is integrated in the plunger assembly.
