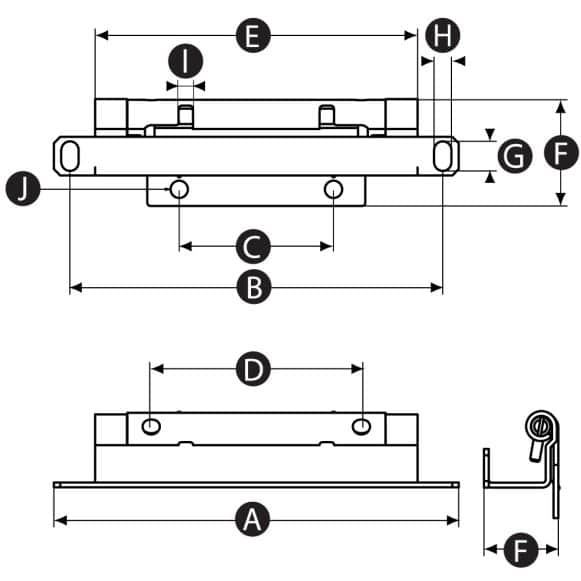

| Part No. | A | B | C | D | E | F | G | H | I | J | Hole size | Material | Download CAD | Stocked | M.O.Q. | Lead time | Price & availability |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 16666T | 126 | 116 | 48 | 44 | 100 | 23.2 | 9.2 | 5.4 | 4.6 | 47.5 | 5.4 | Stainless steel | CAD | Stocked | Minimum order is 2 pieces | Typical lead time is 2 days | Confirm price & availability |
| 16667P | 126 | 116 | 48 | 44 | 100 | 20.5 | 9 | 5.2 | 4.6 | 47.5 | 5.4 | Stainless steel | CAD | Stocked | Minimum order is 2 pieces | Typical lead time is 2 days | Confirm price & availability |
| 16668W | 126 | 116 | 48 | 44 | 100 | 17.5 | 9.2 | 5.4 | 4.6 | 47.5 | 5.4 | Stainless steel | CAD | Stocked | Minimum order is 2 pieces | Typical lead time is 2 days | Confirm price & availability |
| 16669S | 126 | 116 | 48 | 44 | 100 | 23.2 | 9.2 | 5.4 | 4.6 | 47.5 | 5.4 | Steel | CAD | Stocked | Minimum order is 2 pieces | Typical lead time is 2 days | Confirm price & availability |
| 16670Z | 126 | 116 | 48 | 44 | 100 | 20.5 | 9 | 5.2 | 4.6 | 47.5 | 5.4 | Steel | CAD | Stocked | Minimum order is 2 pieces | Typical lead time is 2 days | Confirm price & availability |
| 16671V | 126 | 116 | 48 | 44 | 100 | 17.5 | 9.2 | 5.4 | 4.6 | 47.5 | 5.4 | Steel | CAD | Stocked | Minimum order is 2 pieces | Typical lead time is 2 days | Confirm price & availability |

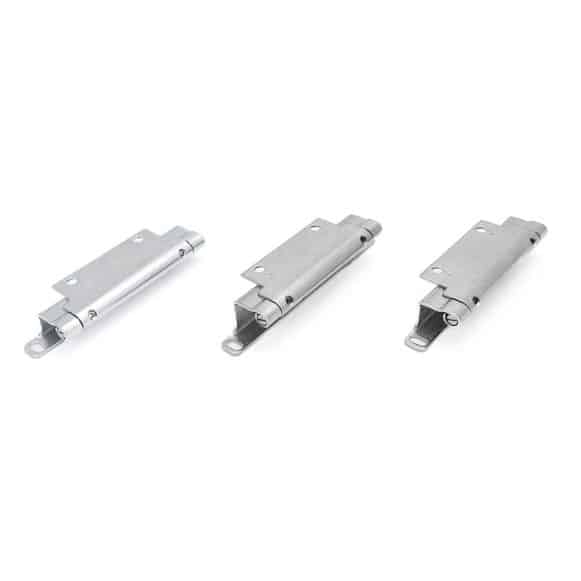

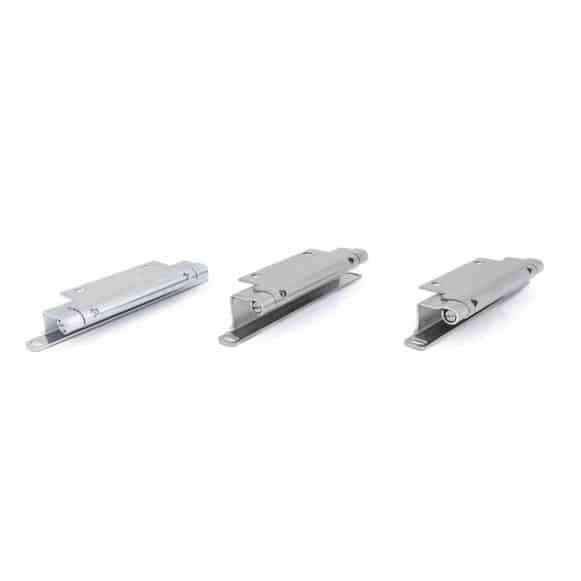

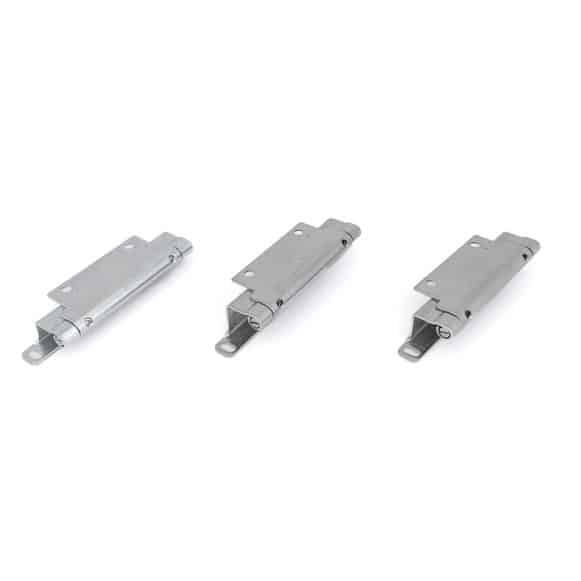

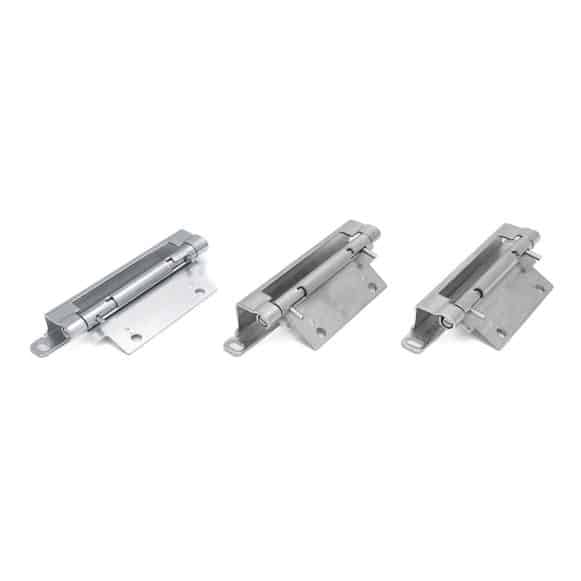

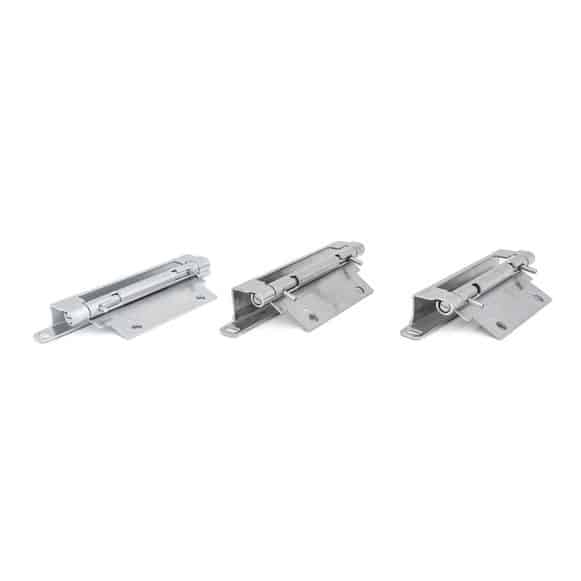

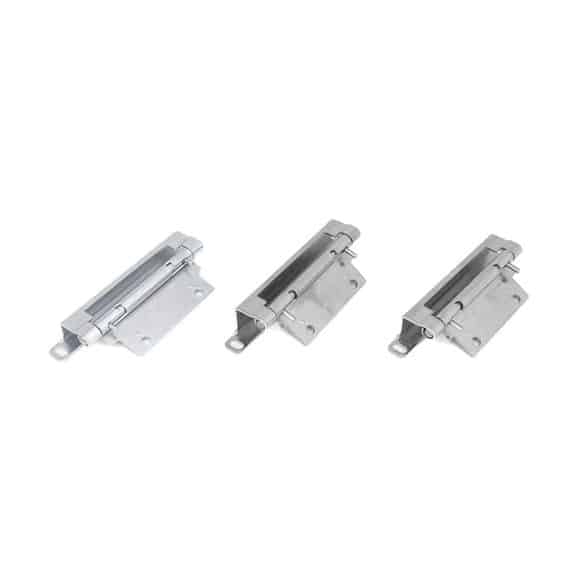

Stainless Steel or Steel Concealed Removable Enclosure Hinge
Description
Our Model 16 HI is a specialist hinge for mounting doors to industrial enclosures and cabinets. This hinge is designed to fit between the door and the enclosure in such a way that the hinge is fully concealed when the door is closed. This improves aesthetics, security, and protects the hinge from the elements.

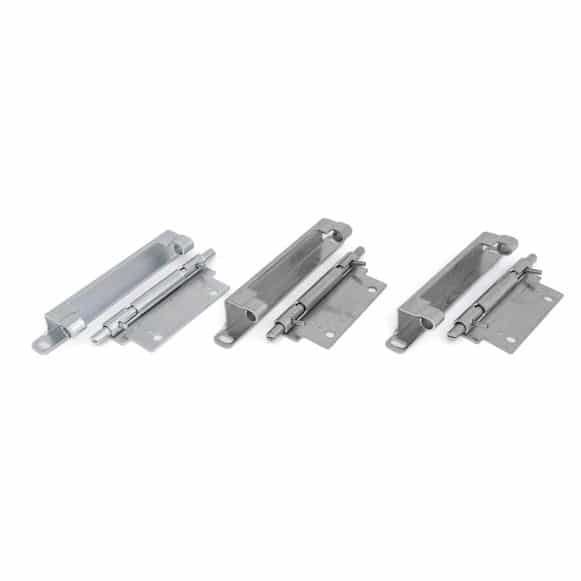

This enclosure hinge incorporates a simple, tool-free mechanism for removing the enclosure door, providing greater access and ease of maintenance.
Material
Stainless steel or steel
Download datasheetThis product complies with:
RoHS REACH Conflict Minerals California Prop 65
